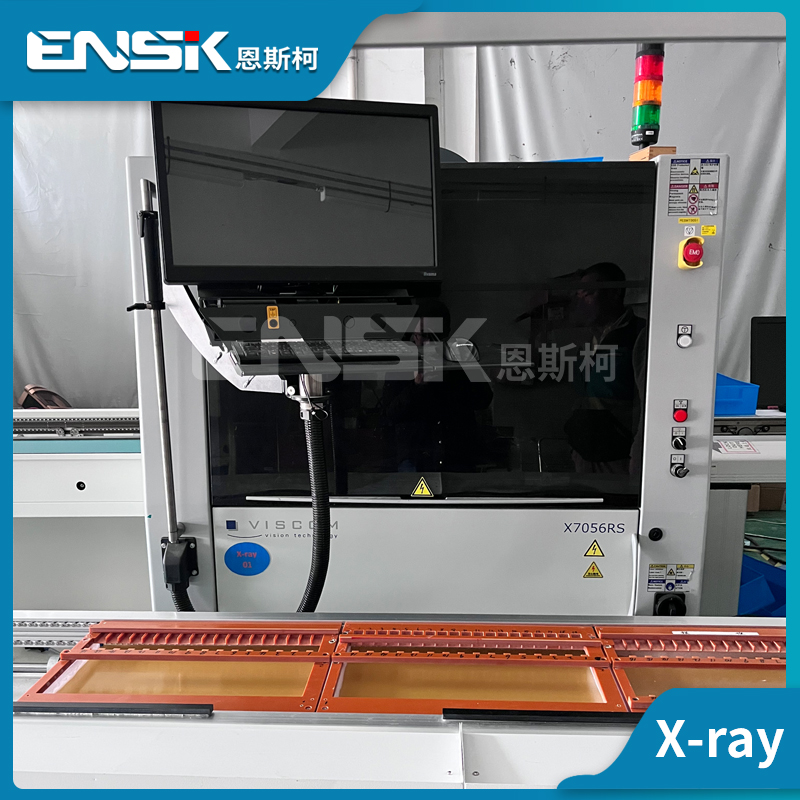

Relevant specifications of VISCOM X7056 online X-ray optical detector
Lens module 8M: 8M technology application OnDemandHR
Size: 57,6 × 43,5mm
Number of megapixel cameras: 2-12
(Vertical) Resolution: 23,4 μ m. 11,7 μ M (switchable)
(Oblique field of view) Resolution: 16,1 μ m. 8,05 μ M (switchable)
User interface: Viscom EasyPro/EasyAuto/ViscomVisionPilot (VVP)
Verify Maintenance Station: Viscom HARAN Maintenance Station (optional)
SPC: Viscom SPC (Statistical Process Control), open interface (optional)
Remote maintenance: Viscom SRC (optional)
Offline programming: Viscom PST34 (external programming station) (optional)
Systematic defect analysis: Viscom PDC (Process Data Collector), and continuous system monitoring TCM (Technology Chain Management)
Operating system: Windows
Processor: Intel core i7
Printed circuit board size: X7056RS: 450 × 350mm (length × Wide)
X7056RL: 610 × 508mm (length × Wide)
Transmission height: 870 to 960 ± mm ± 20mm
Width modulation: automatically adjusted during installation
Positioning unit: frame system with maintenance free high-speed conveyor
Dual track operation: configurable external PCB module
Printed Circuit Board Clamping: During Inspection
Printed circuit board bracket width: 3mm
Clearance size above the surface: 35mm
Clearance size above the bottom surface: 50mm
AOI: Typical speed 20-40cm2/S
AXI: Apply according to actual situation
Interface: SMEMA, SV70, can be set according to customer requirements
Power requirement: 230/400V, other voltages provided according to demand, three-phase AC, 50/60Hz, 5KW
Device size X7056RS: approximately 1266 × two thousand one hundred and eighty-four × 1628mm (width × long × High)
X7056RL: approximately 1738 × three thousand one hundred and sixty-six × 1626mm (width × long × High)
Production line integrated application specification: X7056RS:+25mm, × 7056RL:+25mm
Weight: X7056RS: approximately 2500kg, × 7056RL: approximately 3200kg
