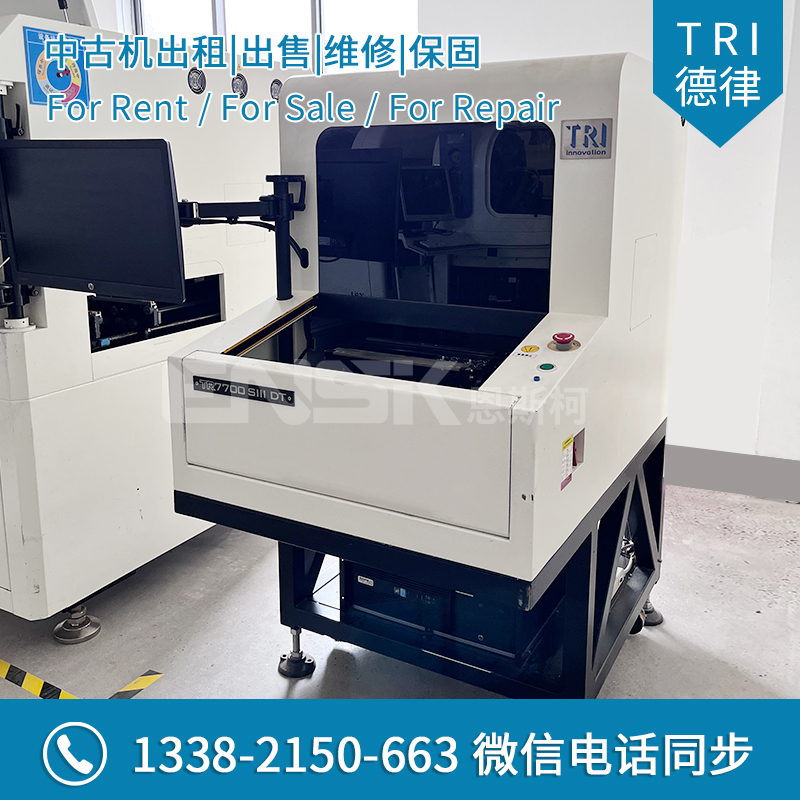

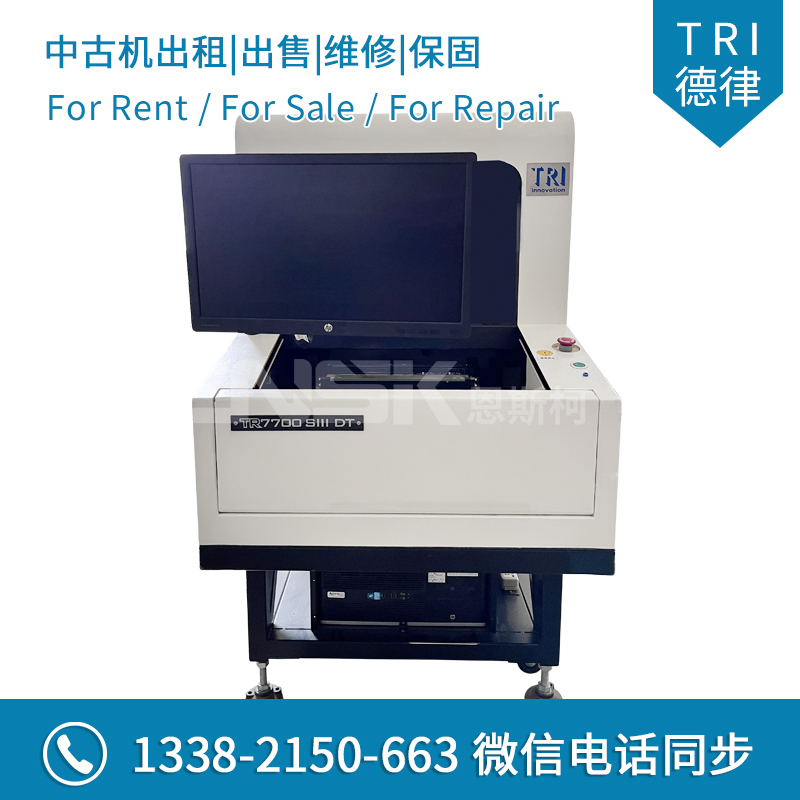

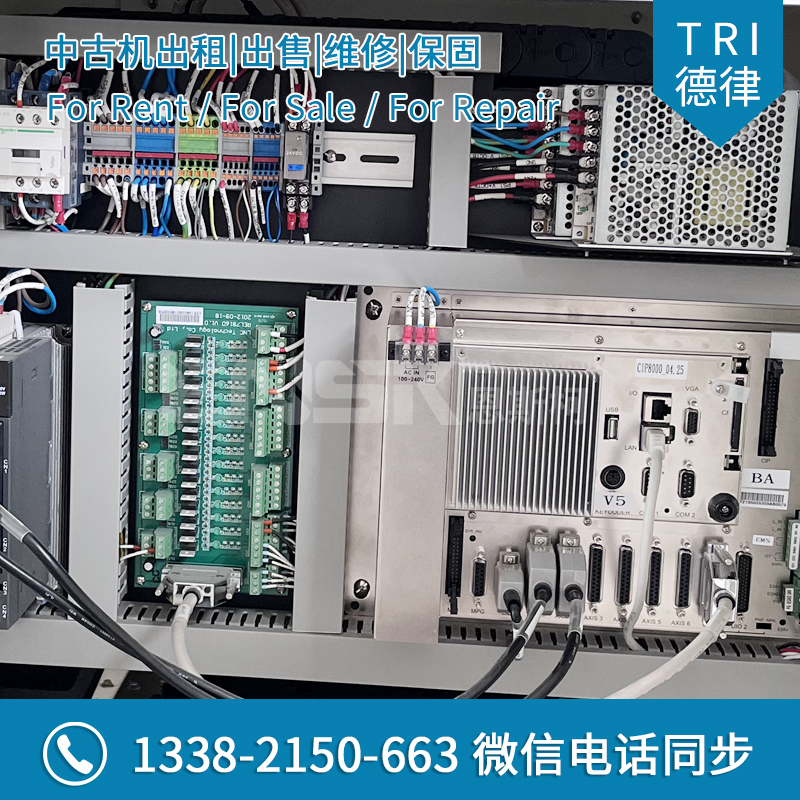

The TR7700 SIII DT is a high-performance offline AOI solution with
the highest accuracy and ease of use. Using TRI's unique multi-phase
light source and a new generation of detection software, the TR7700 SIII
DT has excellent defect detection functions such as fast and simple
programming, and is very suitable for production lines with high
variability.
Buying/Rental Hotline: 13776054406 (mobile phone/WeChat)
characteristic:
• High quality and precision offline AOI
• Fast multiphase dynamic imaging
• Advanced algorithms and multi-phase light sources minimize false positives
specifications：
| Optical System | |
| Imaging Method | Dynamic Imaging |
| Top Camera | 4 Mpix |
| Angle Camera | N/A |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase RGB+W LED |
| 3D Technology | N/A |
| Max. 3D Range | N/A |
| Inspection Performance | |
| Imaging Speed | 4 Mpix@ 10 µm: 60 cm²/sec |
| 4 Mpix@ 12.5 µm: 120 cm²/sec | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC-servo controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | N/A |
| X-Y Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7700 SIII DT: 330 x 250 mm |
| TR7700L SIII DT: 510 x 460 mm | |
| PCB Thickness | 3 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 25 mm [48 mm optional] |
| Bottom Clearance | TR7700 SIII DT: 100 mm |
| TR7700L SIII DT: 50 mm | |
| Edge Clearance | 3 mm |
| Conveyor | Manual |
| Inspection Functions | |
| Component | Missing |
| Tombstoning | |
| Billboarding | |
| Polarity | |
| Rotation | |
| Shift | |
| Wrong Marking (OCV) | |
| Defective | |
| Upside Down | |
| Extra Component | |
| Foreign Material | |
| Solder | Excess Solder |
| Insufficient Solder | |
| Bridging | |
| Through-hole Pins | |
| Lifted Lead | |
| Golden Finger | |
| Scratch/Contamination | |
| Dimensions | |
| WxDxH | TR7700 SIII DT: 860 x 1100 x 1350 mm |
| TR7700L SIII DT: 980 x 1345 x 1490 mm | |
| Weight | TR7700 SIII DT: 340 kg |
| TR7700L SIII DT: 385 kg | |
